C-BT Infrastructure
Project Complex in Design
The Colorado-Big Thompson Project, while relatively simple in concept, is actually complex in its design to collect snowmelt from the Upper Colorado River basin, and deliver it as a supplemental water supply to more than 1 million people and 615,000 acres of irrigated farmland in Northeastern Colorado.
West Slope Collection System
The West Slope collection system stores Upper Colorado River watershed runoff in reservoirs before transporting it to the East Slope through the Alva B. Adams Tunnel. The collection system comprises three reservoirs, a natural lake, two pump plants and associated canals, as well as control and measurement facilities.
The North Fork of the Colorado River enters the C-BT Project collection system on the west side of Shadow Mountain Reservoir. The Colorado River flows from Shadow Mountain to Lake Granby, and exits the southwest side of the lake at Granby Dam.


East Slope Distribution System
Once water travels through the Adams Tunnel and exits the East Portal, it passes through an East Slope distribution system of pipelines, canals, hydropower plants and reservoirs before it is released to farmers, industries and municipalities. C-BT Project water is stored in the distribution system’s three terminal reservoirs: Carter Lake, Horsetooth Reservoir and Boulder Reservoir. Several other East Slope reservoirs play an important role in the C-BT Project’s hydropower system.
The Linchpin to the C-BT Project
As the linchpin of the Colorado-Big Thompson Project, the 13.1-mile long Alva B. Adams Tunnel enables Upper Colorado River Basin water to flow beneath Rocky Mountain National Park to East Slope water users.

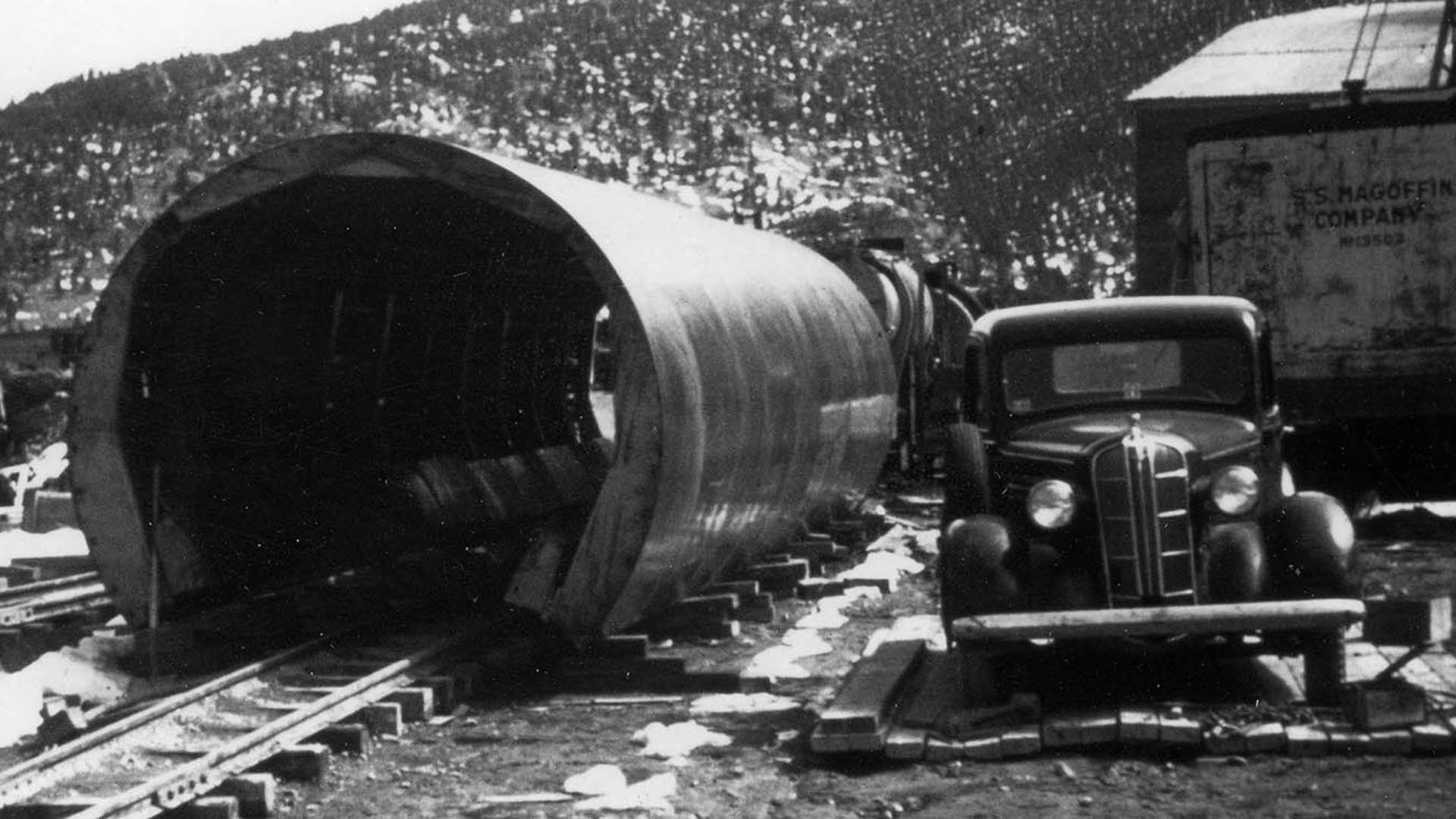

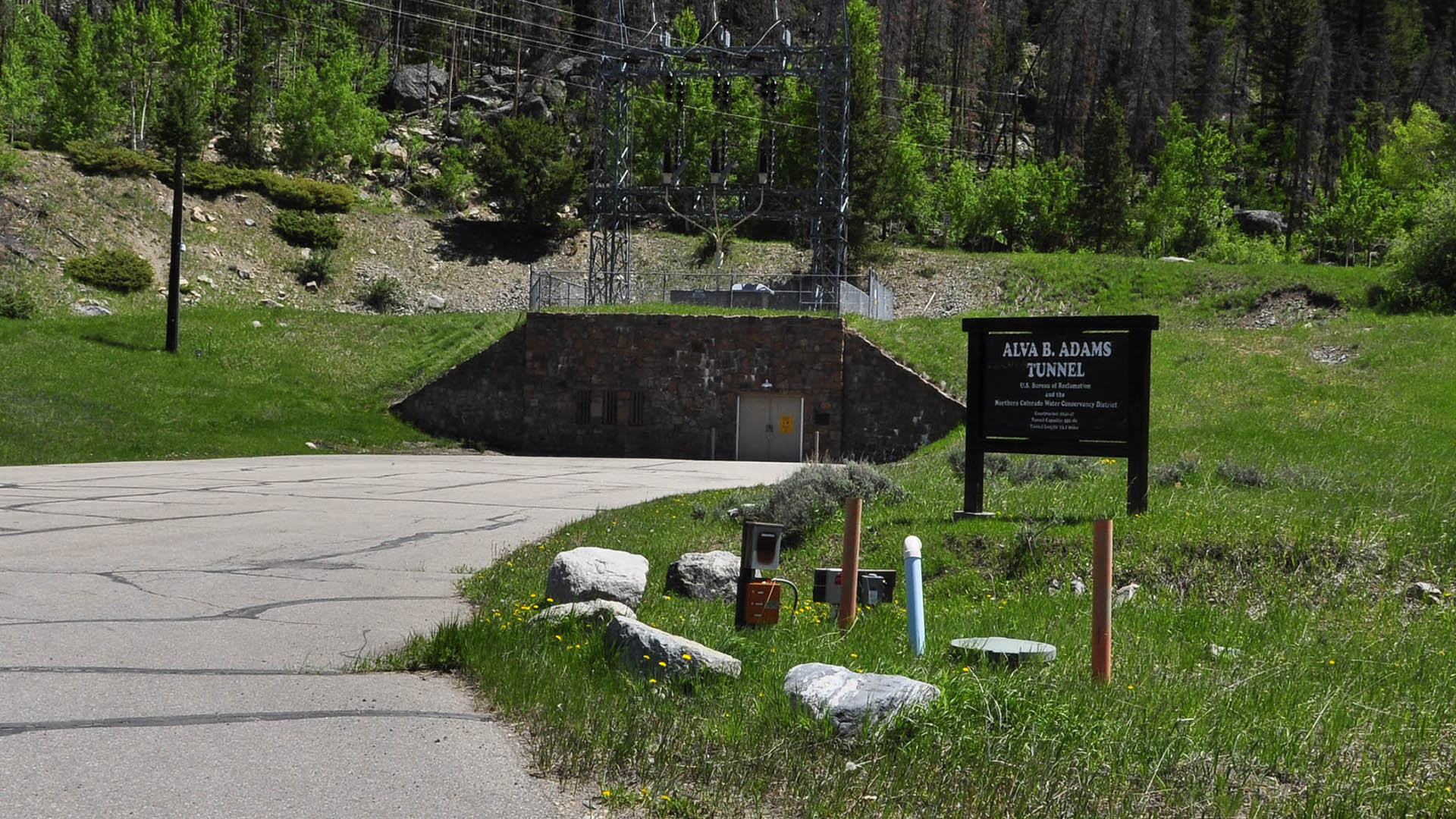

The tunnel’s West Portal is located on the east side of Grand Lake and the East Portal is situated on the Wind River 4 miles southwest of downtown Estes Park. The concrete-lined tunnel is 9-feet 9-inches in diameter, cylindrical-shaped and runs as much as 3,800 feet beneath the surface of the Continental Divide.
The Adams Tunnel drops 109 feet in elevation between the West and East portals, enabling water to flow by gravity without pumping assistance. With a capacity of 550 cubic feet per second, the tunnel delivers more than 200,000 acre-feet of West Slope water annually to Northeastern Colorado. It takes water about two hours to flow the length of the tunnel.
The tunnel is named for Alva B. Adams, a U.S. senator from Colorado who played a key role in convincing Congress to fund and construct the C-BT Project. At the time it was built, the Adams Tunnel was the longest tunnel in the United States to provide water for irrigation. The tunnel cost $12.8 million to construct.
First Water Delivered in 1947

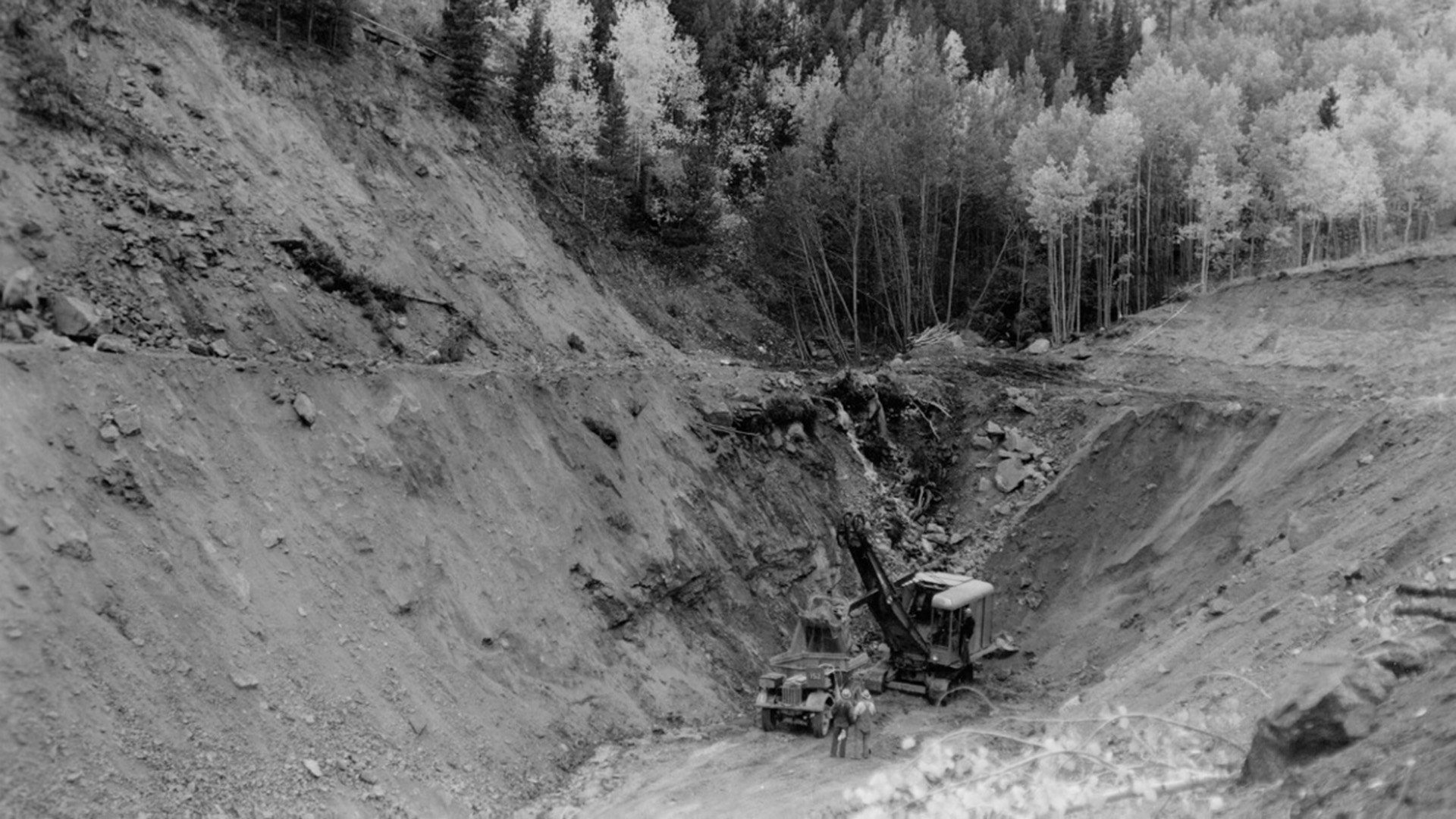

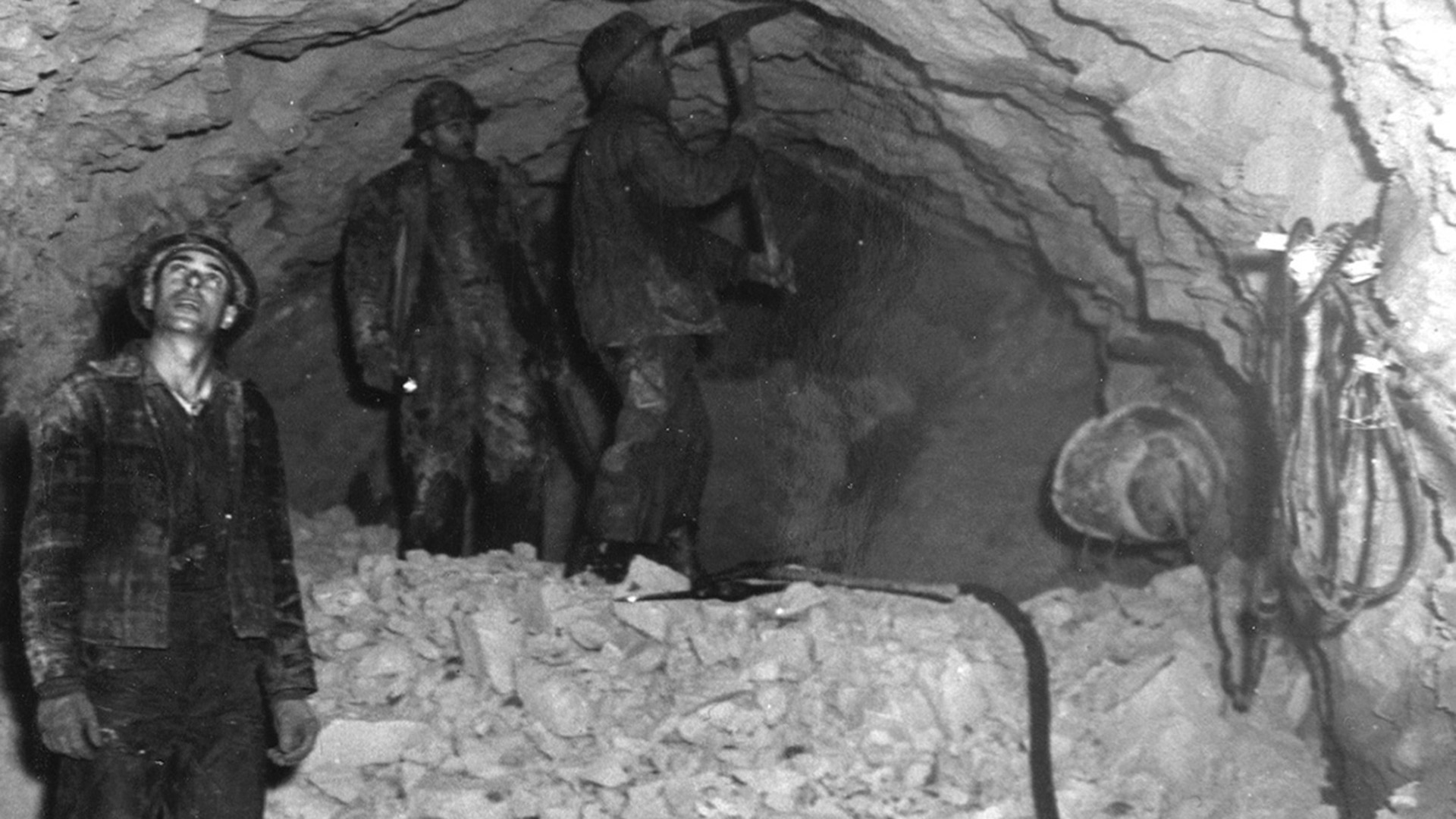

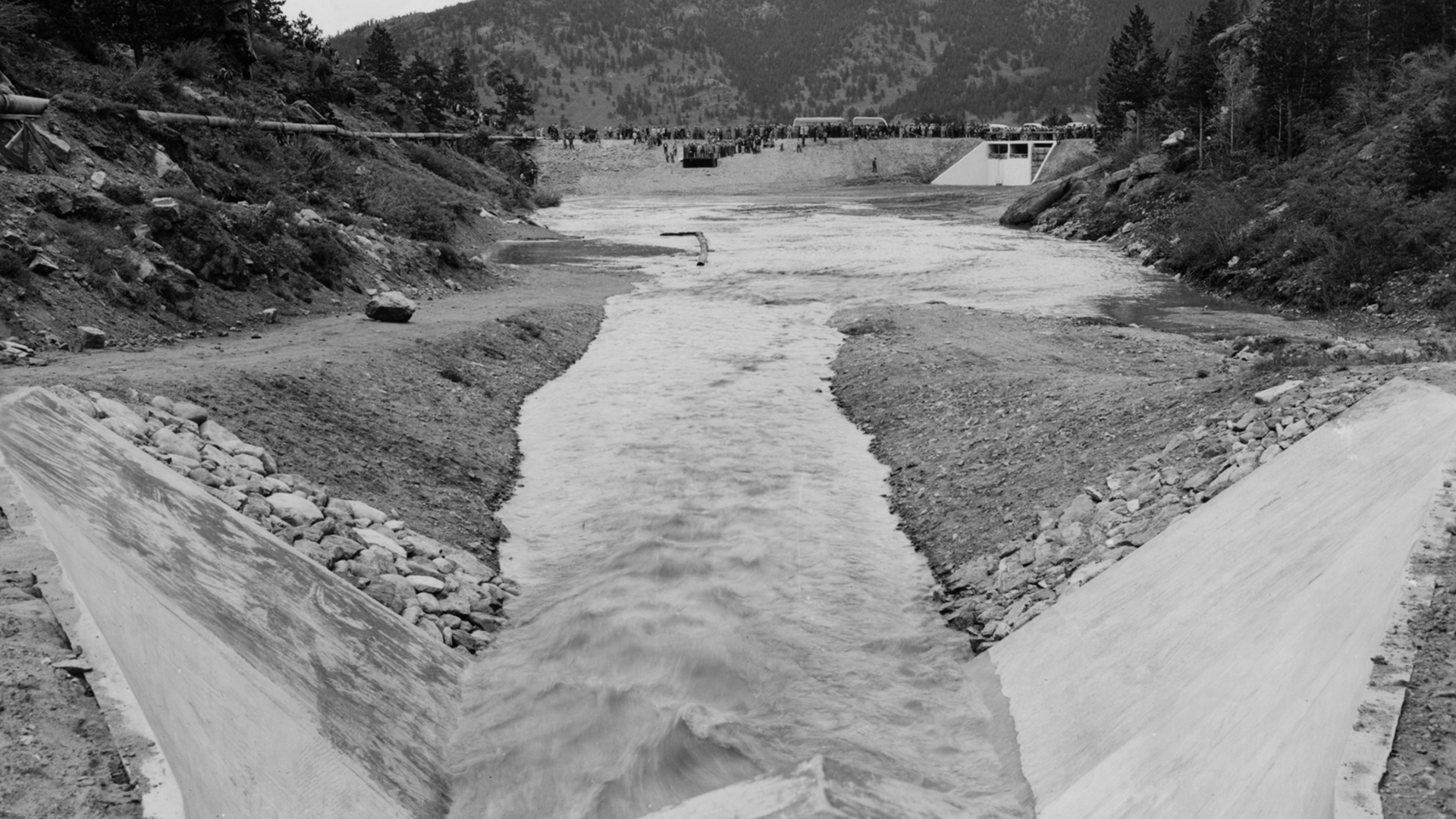

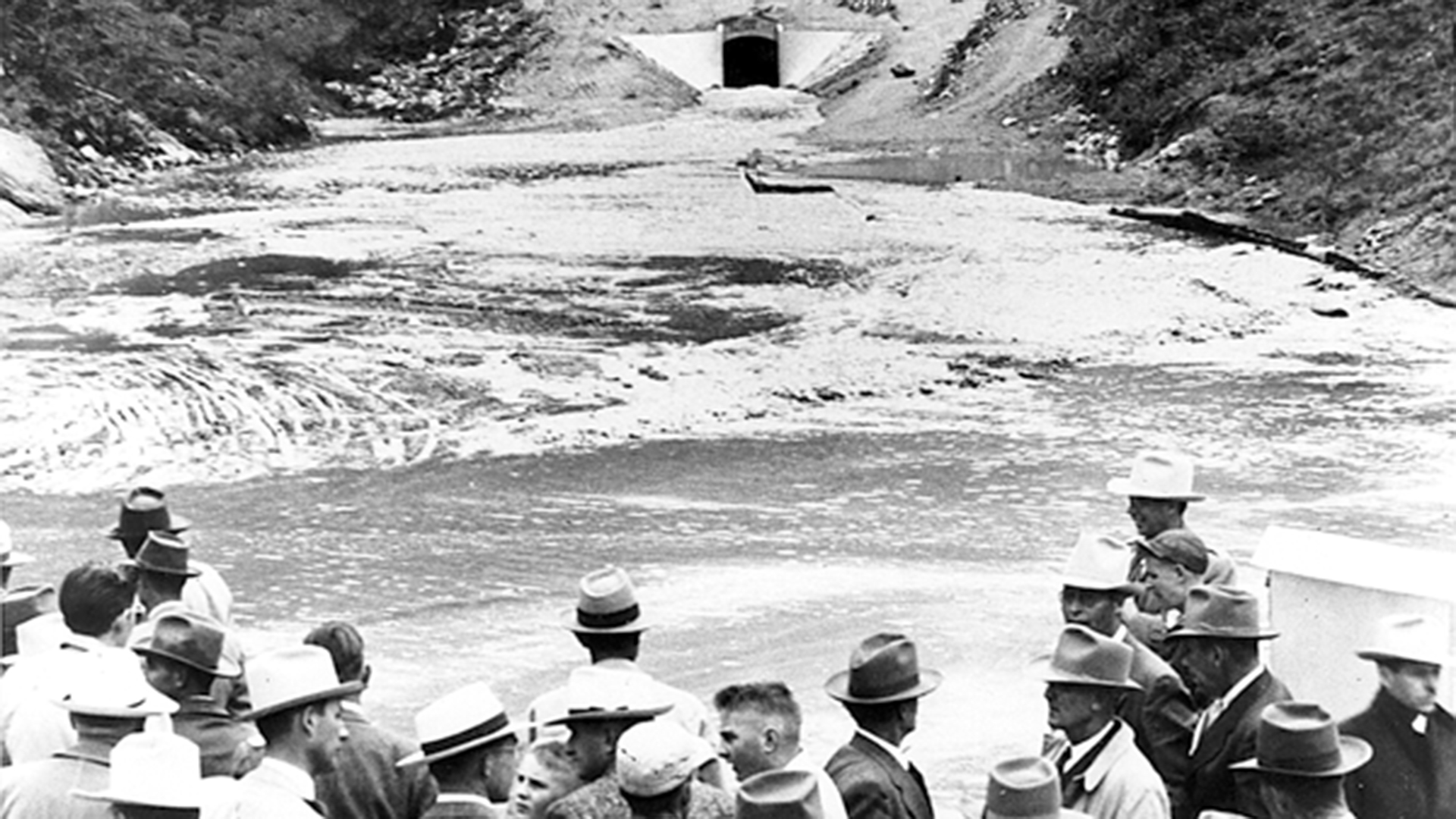

Construction of the Adams Tunnel began on June 23, 1940. Contractors bored the tunnel simultaneously from both portals, and when the two crews met on June 10, 1944, the alignment was off by less than the width of a penny. The first C-BT Project water flowed through the Adams Tunnel on June 23, 1947.
Power for West Slope Pump Plants
Electricity from the Lake Estes Power Plant reaches the West Slope’s Farr and Willow Creek pump plants through a 69,000-volt transmission line extending the length of the Adams Tunnel. The power line, suspended from the tunnel’s ceiling, is encased in a nitrogen-charged conduit to prevent corrosion.

Hydroelectric Power
While the primary purpose of the C-BT Project is to deliver water, it also generates hydroelectric power as water passes through several power facilities on both the East and West slopes. Through the U.S. Department of Energy, the Western Area Power Administration markets 700 million kilowatt hours on average each year. A portion of the power revenues helps repay the federal government for the costs to build the C-BT Project.
